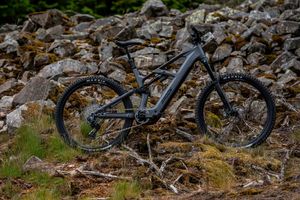

Radon Bikes Deft (2025) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Radon Bikes Deft (2025) | Radon Bikes Deft (2025) | Radon Bikes Deft (2025) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 455 mm | 480 mm | 505 mm |
| Stack | 628 mm | 642 mm | 656 mm |
| STR | 1,38 | 1,34 | 1,30 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 64.5° | 64.5° | 64.5° |
| Seat Angle, effective | 76.5° | 76.5° | 76.5° |
| Seat Angle, real | |||
| Top Tube Length | |||
| Top Tube Length (horizontal) | 602 mm | 632 mm | 662 mm |
| Head Tube Length | 105 mm | 120 mm | 135 mm |
| Seat Tube Length | 425 mm | 450 mm | 475 mm |
| Standover Height | |||
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1.253 mm | 1.284 mm | 1.316 mm |
| FC2RC | 1,73 | 1,80 | 1,87 |
| Bottom Bracket Drop | |||
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | 44 mm | 44 mm | 44 mm |
| Trail | |||
| Travel (rear) | 170 mm | 170 mm | 170 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm |
