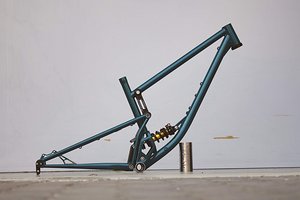

Zoceli Naosm (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Zoceli Naosm (2021) | Zoceli Naosm (2021) | Zoceli Naosm (2021) | Zoceli Naosm (2021) |
|---|---|---|---|---|
| Frame Size/Setup | M | L | XL | XXL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm |
| Stack | 623 mm | 623 mm | 641 mm | 641 mm |
| STR | 1.43 | 1.37 | 1.35 | 1.29 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 760 mm | 771 mm | 798 mm | 810 mm |
| Frame RAAD | 34.9° | 36.1° | 36.5° | 37.7° |
| Front-Center | ||||
| Head Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat Angle, effective | 77.5° | 77.5° | 77.5° | 77.5° |
| Seat Angle, real | ||||
| Top Tube Length | 573 mm | 593 mm | 617 mm | 637 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Seat Tube Length | 380 mm | 405 mm | 430 mm | 455 mm |
| Standover Height | ||||
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1,209 mm | 1,229 mm | 1,258 mm | 1,278 mm |
| FC2RC | 1.78 | 1.83 | 1.89 | 1.94 |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Fork installation height | ||||
| Fork offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | ||||
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) |
