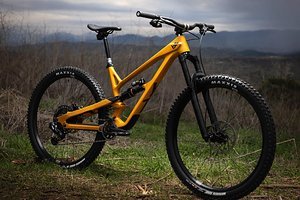

YT Industries Jeffsy Uncaged 8 (2022) - Geometry

💰 YT Industries Jeffsy Uncaged 8 (2022) im Preisvergleich bei MTB News Daily Deals

Compare these geometries with each other

Die Tabelle lässt sich verschieben.
Modell YT Industries Jeffsy Uncaged 8 (2022) YT Industries Jeffsy Uncaged 8 (2022) YT Industries Jeffsy Uncaged 8 (2022) YT Industries Jeffsy Uncaged 8 (2022) YT Industries Jeffsy Uncaged 8 (2022)
Frame Size/Setup S M L XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 430 mm 430 mm 450 mm 450 mm 470 mm 470 mm 490 mm 490 mm 510 mm 510 mm
Stack 618 mm 618 mm 622 mm 622 mm 627 mm 627 mm 636 mm 636 mm 640 mm 640 mm
STR 1.44 1.44 1.38 1.38 1.33 1.33 1.30 1.30 1.25 1.25
Reach+
Stack+
Frame RAD 753 mm 753 mm 768 mm 768 mm 784 mm 784 mm 803 mm 803 mm 818 mm 818 mm
Frame RAAD 34.8° 34.8° 35.9° 35.9° 36.9° 36.9° 37.6° 37.6° 38.6° 38.6°
Front-Center
Head Angle 66° 66.6° 66° 66.6° 66° 66.6° 66° 66.6° 66° 66.6°
Seat Angle, effective 77.1° 77.8° 77° 77.7° 77° 77.7° 76.9° 77.6° 76.9° 77.5°
Seat Angle, real 70.5° 71.1° 70.5° 71.1° 70.5° 71.1° 70.5° 71.1° 70.5° 71.1°
Top Tube Length
Top Tube Length (horizontal) 572 mm 572 mm 593 mm 593 mm 615 mm 615 mm 638 mm 638 mm 660 mm 660 mm
Head Tube Length 100 mm 100 mm 105 mm 105 mm 110 mm 110 mm 120 mm 120 mm 125 mm 125 mm
Seat Tube Length 400 mm 400 mm 415 mm 415 mm 435 mm 435 mm 460 mm 460 mm 485 mm 485 mm
Standover Height 706 mm 706 mm 702 mm 702 mm 701 mm 701 mm 693 mm 693 mm 694 mm 694 mm
Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm 440 mm 440 mm 440 mm 440 mm
Wheelbase 1,174 mm 1,174 mm 1,196 mm 1,196 mm 1,218 mm 1,218 mm 1,247 mm 1,247 mm 1,269 mm 1,269 mm
FC2RC 1.70 1.70 1.75 1.75 1.80 1.80 1.83 1.83 1.88 1.88
Bottom Bracket Drop 32 mm 34 mm 32 mm 34 mm 32 mm 34 mm 32 mm 34 mm 32 mm 34 mm
Bottom Bracket Height 344 mm 352 mm 344 mm 352 mm 344 mm 352 mm 344 mm 352 mm 344 mm 352 mm
Fork installation height
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Trail
Travel (rear) 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
Travel (front) 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
