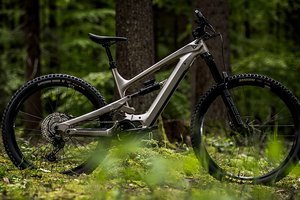

YT Industries Decoy Elite (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell YT Industries Decoy Elite (2021) YT Industries Decoy Elite (2021) YT Industries Decoy Elite (2021) YT Industries Decoy Elite (2021) YT Industries Decoy Elite (2021)
Frame Size/Setup S M L XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 410 mm 410 mm 430 mm 430 mm 450 mm 450 mm 470 mm 470 mm 490 mm 490 mm
Stack 623 mm 623 mm 628 mm 628 mm 633 mm 633 mm 642 mm 642 mm 651 mm 651 mm
STR 1,52 1,52 1,46 1,46 1,41 1,41 1,37 1,37 1,33 1,33
Reach+
Stack+
Front-Center
Head Angle 65.5° 65° 65.5° 65° 65.5° 65° 65.5° 65° 65.5° 65°
Seat Angle, effective 76.5° 76° 76.5° 76° 76.5° 76° 76.5° 76° 76.5° 76°
Seat Angle, real 72° 71.5° 72° 71.5° 72° 71.5° 72° 71.5° 72° 71.5°
Top Tube Length 569 mm 569 mm 591 mm 591 mm 612 mm 612 mm 635 mm 635 mm 658 mm 658 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 95 mm 100 mm 100 mm 105 mm 105 mm 115 mm 115 mm 125 mm 125 mm
Seat Tube Length 400 mm 400 mm 420 mm 420 mm 445 mm 445 mm 470 mm 470 mm 495 mm 495 mm
Standover Height
Chainstay Length 442 mm 442 mm 442 mm 442 mm 442 mm 442 mm 442 mm 442 mm 442 mm 442 mm
Wheelbase 1.182 mm 1.182 mm 1.204 mm 1.204 mm 1.226 mm 1.226 mm 1.251 mm 1.251 mm 1.275 mm 1.275 mm
Bottom Bracket Drop 17 mm 17 mm 17 mm 17 mm 17 mm 17 mm 17 mm 17 mm 17 mm 17 mm
Bottom Bracket Height 350 mm 343 mm 350 mm 343 mm 350 mm 343 mm 350 mm 343 mm 350 mm 343 mm
Fork installation height
Fork offset
Fork caster
Travel (rear) 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
