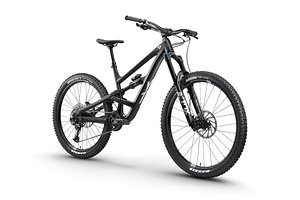

YT Industries Capra 29 (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell YT Industries Capra 29 (2021) YT Industries Capra 29 (2021) YT Industries Capra 29 (2021) YT Industries Capra 29 (2021) YT Industries Capra 29 (2021)
Frame Size/Setup S M L XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 427 mm 427 mm 447 mm 447 mm 467 mm 467 mm 487 mm 487 mm 507 mm 507 mm
Stack 625 mm 625 mm 634 mm 634 mm 634 mm 634 mm 643 mm 643 mm 652 mm 652 mm
STR 1,46 1,46 1,42 1,42 1,36 1,36 1,32 1,32 1,29 1,29
Reach+
Stack+
Front-Center
Head Angle 64.2° 64.5° 64.2° 64.5° 64.2° 64.5° 64.2° 64.5° 64.2° 64.5°
Seat Angle, effective 77.7° 78° 77.6° 77.9° 77.6° 77.9° 77.6° 77.9° 77.5° 77.8°
Seat Angle, real
Top Tube Length 563 mm 563 mm 586 mm 586 mm 606 mm 606 mm 629 mm 629 mm 652 mm 652 mm
Top Tube Length (horizontal)
Head Tube Length 100 mm 100 mm 110 mm 110 mm 110 mm 110 mm 120 mm 120 mm 130 mm 130 mm
Seat Tube Length 395 mm 395 mm 420 mm 420 mm 445 mm 445 mm 470 mm 470 mm 495 mm 495 mm
Standover Height 745 mm 745 mm 737 mm 737 mm 735 mm 735 mm 746 mm 746 mm 743 mm 743 mm
Chainstay Length 438 mm 438 mm 438 mm 438 mm 438 mm 438 mm 443 mm 443 mm 443 mm 443 mm
Wheelbase 1.204 mm 1.204 mm 1.228 mm 1.228 mm 1.248 mm 1.248 mm 1.277 mm 1.277 mm 1.302 mm 1.302 mm
Bottom Bracket Drop 27 mm 22 mm 27 mm 22 mm 27 mm 22 mm 27 mm 22 mm 27 mm 22 mm
Bottom Bracket Height 349 mm 354 mm 349 mm 354 mm 349 mm 354 mm 349 mm 354 mm 349 mm 354 mm
Fork installation height 583.7 mm 583.7 mm 583.7 mm 583.7 mm 583.7 mm 583.7 mm 583.7 mm 583.7 mm 583.7 mm 583.7 mm
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
