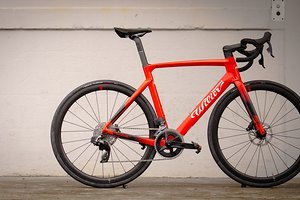

Wilier Cento10 SL Disc (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Wilier Cento10 SL Disc (2022) | Wilier Cento10 SL Disc (2022) | Wilier Cento10 SL Disc (2022) | Wilier Cento10 SL Disc (2022) | Wilier Cento10 SL Disc (2022) | Wilier Cento10 SL Disc (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL | XXL |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 378 mm | 382 mm | 387 mm | 391 mm | 396 mm | 400 mm |
| Stack | 503 mm | 519 mm | 536 mm | 554 mm | 571 mm | 589 mm |
| STR | 1.33 | 1.36 | 1.39 | 1.42 | 1.44 | 1.47 |
| Reach+ | ||||||
| Stack+ | ||||||
| Frame RAD | 629 mm | 644 mm | 661 mm | 678 mm | 695 mm | 712 mm |
| Frame RAAD | 36.9° | 36.4° | 35.8° | 35.2° | 34.7° | 34.2° |
| Front-Center | ||||||
| Head Angle | 71.3° | 72° | 72.5° | 73° | 73° | 73.5° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 75° | 74.5° | 74° | 73.5° | 73° | 72.5° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 513 mm | 526 mm | 541 mm | 556 mm | 571 mm | 587 mm |
| Head Tube Length | 107 mm | 121 mm | 138 mm | 154 mm | 173 mm | 190 mm |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Standover Height | ||||||
| Chainstay Length | 404 mm | 404 mm | 405 mm | 407 mm | 409 mm | 410 mm |
| Wheelbase | ||||||
| FC2RC | ||||||
| Bottom Bracket Drop | ||||||
| Bottom Bracket Height | ||||||
| Fork installation height | ||||||
| Fork offset | ||||||
| Trail | ||||||
| Travel (rear) | ||||||
| Travel (front) |
