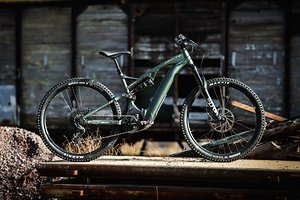

Whyte E-150 RS (2020) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Whyte E-150 RS (2020) | Whyte E-150 RS (2020) | Whyte E-150 RS (2020) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 451 mm | 476 mm | 506 mm |
| Stack | 631 mm | 643 mm | 657 mm |
| STR | 1,40 | 1,35 | 1,30 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 64.7° | 64.7° | 64.7° |
| Seat Angle, effective | 74.9° | 74.7° | 74.5° |
| Seat Angle, real | |||
| Top Tube Length | 611 mm | 641 mm | 676 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 120 mm | 133 mm | 148 mm |
| Seat Tube Length | 431.8 mm | 457.2 mm | 482.6 mm |
| Standover Height | 814 mm | 828 mm | 828 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1.230 mm | 1.261 mm | 1.298 mm |
| Bottom Bracket Drop | |||
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm |
| Fork installation height | |||
| Fork offset | 42 mm | 42 mm | 42 mm |
| Trail | |||
| Travel (rear) | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm |
