Compare these geometries with each other

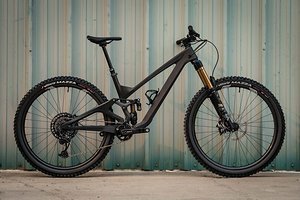

| Modell | We Are One Arrival (2022) | We Are One Arrival (2022) | We Are One Arrival (2022) |
|---|---|---|---|
| Frame Size/Setup | SZ1 | SZ2 | SZ3 |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 450 mm | 475 mm | 500 mm |
| Stack | 616 mm | 621 mm | 626 mm |
| STR | 1,37 | 1,31 | 1,25 |
| Front-Center | |||
| Head Angle | 64° | 64° | 64° |
| Seat Angle, effective | 77° | 77° | 77° |
| Seat Angle, real | |||
| Top Tube Length | 594 mm | 610 mm | 645.5 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 95 mm | 100 mm | 105 mm |
| Seat Tube Length | |||
| Standover Height | 665 mm | 665 mm | 676 mm |
| Chainstay Length | 437 mm | 437 mm | 441 mm |
| Wheelbase | 1.220 mm | 1.246 mm | 1.277 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm |
| Fork installation height | |||
| Fork offset | 44 mm | 44 mm | 44 mm |
| Fork caster | |||
| Travel (rear) | 150 mm | 150 mm | 150 mm |
| Travel (front) | 160 mm | 160 mm | 160 mm |
