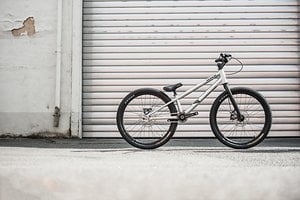

VPACE Trixi (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell VPACE Trixi (2022) VPACE Trixi (2022)
Frame Size/Setup Trixi20 Trixi24
Typ Mountainbike Mountainbike
Wheel Size 20″ 24″
Reach 345 mm 385 mm
Stack 427 mm 466 mm
STR 1,24 1,21
Head Angle 73° 73°
Seat Angle, effective 73.5° 73.5°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 471 mm 523 mm
Head Tube Length 100 mm 140 mm
Seat Tube Length 200 mm 235 mm
Standover Height
Chainstay Length 310 mm 363 mm
Wheelbase 832 mm 936 mm
Bottom Bracket Drop -15 mm -15 mm
Bottom Bracket Height
Fork installation height 375 mm 375 mm
Fork offset 40 mm 40 mm
Fork caster
Travel (rear)
Travel (front)
