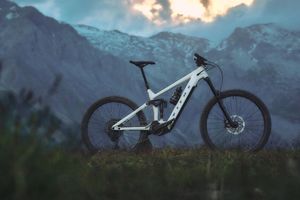

Vitus E Mythique (2024) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Vitus E Mythique (2024) | Vitus E Mythique (2024) | Vitus E Mythique (2024) | Vitus E Mythique (2024) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 |
| Reach | 438 mm 434 mm | 456 mm 450 mm | 483 mm 476 mm | 510 mm 504 mm |
| Stack | 625 mm 630 mm | 635 mm 638 mm | 643 mm 648 mm | 652 mm 657 mm |
| STR | 1,43 1,45 | 1,39 1,42 | 1,33 1,36 | 1,28 1,30 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° 63.5° | 64° 63.5° | 64° 63.5° | 64° 63.5° |
| Seat Angle, effective | 78° 77.5° | 78° 77.5° | 78° 77.5° | 78° 77.5° |
| Seat Angle, real | 73.5° 73° | 73.5° 73° | 73.5° 73° | 73.5° 73° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 573 mm 573 mm | 591 mm 591 mm | 619 mm 619 mm | 649 mm 649 mm |
| Head Tube Length | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm | 130 mm 130 mm |
| Seat Tube Length | 380 mm 380 mm | 410 mm 410 mm | 440 mm 440 mm | 480 mm 480 mm |
| Standover Height | ||||
| Chainstay Length | 445 mm 445 mm | 445 mm 445 mm | 445 mm 445 mm | 445 mm 445 mm |
| Wheelbase | 1.224 mm 1.224 mm | 1.244 mm 1.244 mm | 1.275 mm 1.275 mm | 1.307 mm 1.307 mm |
| FC2RC | 1,75 1,75 | 1,80 1,80 | 1,87 1,87 | 1,94 1,94 |
| Bottom Bracket Drop | 30 mm 26 mm | 30 mm 26 mm | 30 mm 26 mm | 30 mm 26 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
| Travel (front) | 160 mm 170 mm | 160 mm 170 mm | 160 mm 170 mm | 160 mm 170 mm |
