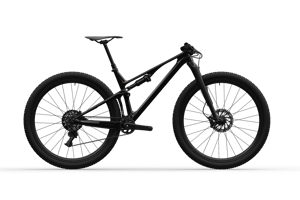

Unno Horn (2019) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Unno Horn (2019)
Frame Size/Setup One Size
Typ Mountainbike
Wheel Size 29″
Reach 441 mm
Stack 568 mm
STR 1,29
Head Angle 67°
Seat Angle, effective 74.1°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal)
Head Tube Length 85 mm
Seat Tube Length 440 mm
Standover Height
Chainstay Length 418 mm
Wheelbase 1.133 mm
Bottom Bracket Drop 40 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 100 mm
Travel (front) 100 mm


Sitzwinkel gilt für Sattelhöhe 700 mm.
