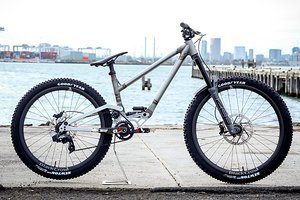

Trinity Trinity MTB (2023) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Trinity Trinity MTB (2023) Trinity Trinity MTB (2023) Trinity Trinity MTB (2023)
Frame Size/Setup T1 T2 T3
Typ Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 435 mm 460 mm 485 mm
Stack 638 mm 638 mm 638 mm
STR 1,47 1,39 1,32
Head Angle 63° 63° 63°
Seat Angle, effective 76° 76° 76°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 593 mm 621 mm 653 mm
Head Tube Length 105 mm 105 mm 105 mm
Seat Tube Length 410 mm 325 mm 440 mm
Standover Height
Chainstay Length 440 mm 450 mm 460 mm
Wheelbase 1.238 mm 1.277 mm 1.321 mm
Bottom Bracket Drop 9 mm 9 mm 9 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear)
Travel (front) 200 mm 200 mm 200 mm
