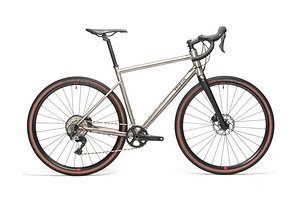

Triban GRVL900 Ti (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Triban GRVL900 Ti (2021) | Triban GRVL900 Ti (2021) | Triban GRVL900 Ti (2021) | Triban GRVL900 Ti (2021) | Triban GRVL900 Ti (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 385 mm | 390 mm | 389 mm | 395 mm | 396 mm |
| Stack | 524 mm | 542 mm | 569 mm | 603 mm | 633 mm |
| STR | 1.36 | 1.39 | 1.46 | 1.53 | 1.60 |
| Reach+ | |||||
| Stack+ | |||||
| Frame RAD | 650 mm | 668 mm | 689 mm | 721 mm | 747 mm |
| Frame RAAD | 36.3° | 35.7° | 34.4° | 33.2° | 32° |
| Front-Center | |||||
| Head Angle | 69.8° | 70.8° | 71.5° | 71.5° | 71.5° |
| Seat Angle, effective | 75° | 74.5° | 73.5° | 73.5° | 73° |
| Seat Angle, real | 75° | 74.5° | 73.5° | 73.5° | 73° |
| Top Tube Length | 525 mm | 540 mm | 558 mm | 574 mm | 590 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 105 mm | 120 mm | 141 mm | 175 mm | 205 mm |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 530 mm |
| Standover Height | |||||
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1,010 mm | 1,012 mm | 1,014.5 mm | 1,016 mm | 1,026 mm |
| FC2RC | 1.38 | 1.38 | 1.39 | 1.39 | 1.41 |
| Bottom Bracket Drop | |||||
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Trail | |||||
| Travel (rear) | |||||
| Travel (front) |
