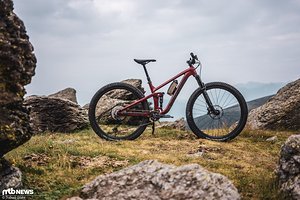

Trek Top Fuel (130 mm Gabel) (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Trek Top Fuel (130 mm Gabel) (2022) Trek Top Fuel (130 mm Gabel) (2022) Trek Top Fuel (130 mm Gabel) (2022) Trek Top Fuel (130 mm Gabel) (2022) Trek Top Fuel (130 mm Gabel) (2022) Trek Top Fuel (130 mm Gabel) (2022) Trek Top Fuel (130 mm Gabel) (2022)
Frame Size/Setup XS S M ML L XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 27,5″ / 650B 27,5″ / 650B 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 395.5 mm 399.3 mm 415.1 mm 419.4 mm 445.2 mm 449.4 mm 460.2 mm 464.4 mm 475.2 mm 479.4 mm 495.2 mm 499.4 mm 515.3 mm 519.4 mm
Stack 560.8 mm 558 mm 598.9 mm 595.9 mm 599.1 mm 595.9 mm 603.7 mm 600.5 mm 608.3 mm 605.1 mm 622.1 mm 618.8 mm 631.3 mm 627.9 mm
STR 1,42 1,40 1,44 1,42 1,35 1,33 1,31 1,29 1,28 1,26 1,26 1,24 1,23 1,21
Reach+
Stack+
Front-Center
Head Angle 65.5° 65.9° 65.5° 65.9° 65.5° 65.9° 65.5° 65.9° 65.6° 65.9° 65.6° 65.9° 65.6° 65.9°
Seat Angle, effective 75.5° 75.9° 75.5° 75.9° 75.5° 75.9° 75.5° 75.9° 75.6° 75.9° 75.6° 75.9° 75.6° 75.9°
Seat Angle, real 69.5° 69.9° 69.5° 69.9° 69.5° 69.9° 69.5° 69.9° 69.6° 69.9° 69.6° 69.9° 69.6° 69.9°
Top Tube Length 540.1 mm 539.2 mm 569.7 mm 568.6 mm 599.7 mm 598.6 mm 615.8 mm 614.8 mm 632 mm 630.9 mm 655.4 mm 654.3 mm 677.7 mm 676.6 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 95 mm 100 mm 100 mm 100 mm 100 mm 105 mm 105 mm 110 mm 110 mm 125 mm 125 mm 135 mm 135 mm
Seat Tube Length
Standover Height 699.3 mm 703.4 mm 719.4 mm 723.9 mm 739.3 mm 743.9 mm 744.2 mm 748.9 mm 749.2 mm 753.9 mm 759.1 mm 763.9 mm 769 mm 773.9 mm
Chainstay Length 435 mm 434 mm 435 mm 433.9 mm 435 mm 433.9 mm 435 mm 433.9 mm 435 mm 433.9 mm 435 mm 433.9 mm 435 mm 433.9 mm
Wheelbase 1.126 mm 1.125 mm 1.154 mm 1.153 mm 1.184 mm 1.183 mm 1.201 mm 1.200 mm 1.218 mm 1.217 mm 1.244 mm 1.243 mm 1.268 mm 1.267 mm
Bottom Bracket Drop 16.5 mm 11.7 mm 32.4 mm 27.2 mm 32.5 mm 27.2 mm 32.6 mm 27.2 mm 32.6 mm 27.2 mm 32.7 mm 27.2 mm 32.7 mm 27.2 mm
Bottom Bracket Height 339 mm 343.8 mm 341.1 mm 346.3 mm 341 mm 346.3 mm 340.9 mm 346.3 mm 340.9 mm 346.3 mm 340.8 mm 346.3 mm 340.8 mm 346.3 mm
Fork installation height 522 mm 522 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm 541 mm
Fork offset 44 mm 44 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm
Fork caster
Travel (rear) 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm
Travel (front) 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm

Notes

130 mm Federgabel
