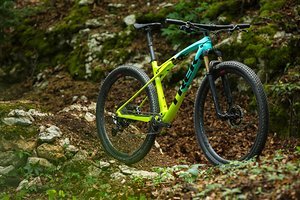

Trek Supercaliber (2020) - Geometry

The table can be moved.

Modell	Trek Supercaliber (2020)	Trek Supercaliber (2020)	Trek Supercaliber (2020)	Trek Supercaliber (2020)	Trek Supercaliber (2020)
Frame Size/Setup	S	M	ML	L	XL
	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail
Typ	Mountainbike	Mountainbike	Mountainbike	Mountainbike	Mountainbike
Wheel Size	29″	29″	29″	29″	29″
Reach	395 mm	425 mm	440 mm	455 mm	485 mm
Stack	594 mm	594 mm	594 mm	594 mm	608 mm
STR	1,50	1,40	1,35	1,31	1,25
Front-Center
Head Angle	69°	69°	69°	69°	69°
Seat Angle, effective	74°	74°	74°	74°	74°
Seat Angle, real	70°	70.5°	70.5°	71°	71°
Top Tube Length	565 mm	595 mm	610 mm	625 mm	659 mm
Top Tube Length (horizontal)
Head Tube Length	90 mm	90 mm	90 mm	90 mm	105 mm
Seat Tube Length	394 mm	419 mm	445 mm	470 mm	508 mm
Standover Height	750 mm	760 mm	760 mm	787 mm	787 mm
Chainstay Length	430 mm	430 mm	430 mm	430 mm	430 mm
Wheelbase	1.079 mm	1.106 mm	1.121 mm	1.136 mm	1.172 mm
Bottom Bracket Drop	53 mm	53 mm	53 mm	53 mm	53 mm
Bottom Bracket Height	320 mm	320 mm	320 mm	320 mm	320 mm
Fork installation height	504 mm	504 mm	504 mm	504 mm	504 mm
Fork offset	44 mm	44 mm	44 mm	44 mm	44 mm
Fork caster
Travel (rear)	60 mm	60 mm	60 mm	60 mm	60 mm
Travel (front)	100 mm	100 mm	100 mm	100 mm	100 mm
