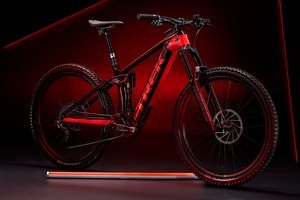

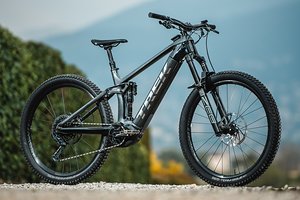

Trek Rail (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Trek Rail (2022) | Trek Rail (2022) | Trek Rail (2022) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 451.8 mm 456.3 mm | 486.8 mm 491.3 mm | 516.8 mm 521.2 mm |
| Stack | 632.6 mm 629.3 mm | 646.2 mm 642.8 mm | 659.8 mm 656.3 mm |
| STR | 1.40 1.38 | 1.33 1.31 | 1.28 1.26 |
| Reach+ | |||
| Stack+ | |||
| Frame RAD | 777 mm 777 mm | 809 mm 809 mm | 838 mm 838 mm |
| Frame RAAD | 35.5° 35.9° | 37° 37.4° | 38.1° 38.5° |
| Front-Center | |||
| Head Angle | 64.2° 64.6° | 64.2° 64.6° | 64.2° 64.6° |
| Seat Angle, effective | 76.7° 77.1° | 76.7° 77.1° | 76.7° 77.1° |
| Seat Angle, real | |||
| Top Tube Length | 601.2 mm 600.2 mm | 639.4 mm 638.3 mm | 672.5 mm 671.5 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 110 mm 110 mm | 125 mm 125 mm | 140 mm 140 mm |
| Seat Tube Length | |||
| Standover Height | 767.8 mm 772.7 mm | 764.7 mm 769.7 mm | 762.6 mm 767.8 mm |
| Chainstay Length | 448 mm 446.7 mm | 448 mm 446.7 mm | 448 mm 446.7 mm |
| Wheelbase | 1,236 mm 1,235 mm | 1,277 mm 1,277 mm | 1,314 mm 1,313 mm |
| FC2RC | 1.76 1.76 | 1.85 1.86 | 1.93 1.94 |
| Bottom Bracket Drop | 32.7 mm 27.1 mm | 32.8 mm 27.1 mm | 32.9 mm 27 mm |
| Bottom Bracket Height | 340.8 mm 346.4 mm | 340.7 mm 346.4 mm | 340.6 mm 346.5 mm |
| Fork installation height | 576 mm 576 mm | 576 mm 576 mm | 576 mm 576 mm |
| Fork offset | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm |
| Trail | |||
| Travel (rear) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
| Travel (front) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
