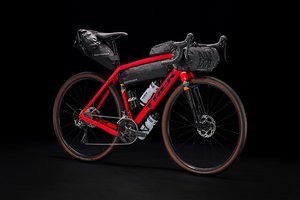

Trek Checkpoint (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Trek Checkpoint (2022) Trek Checkpoint (2022) Trek Checkpoint (2022) Trek Checkpoint (2022) Trek Checkpoint (2022) Trek Checkpoint (2022)
Frame Size/Setup 49 cm 52 cm 54 cm 56 cm 58 cm 61 cm
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 393 mm 399 mm 403 mm 407 mm 411 mm 417 mm
Stack 538 mm 553 mm 571 mm 592 mm 609 mm 639 mm
STR 1,37 1,39 1,42 1,45 1,48 1,53
Front-Center
Head Angle 71.2° 71.6° 71.8° 72.2° 72.3° 72.6°
Seat Angle, effective
Seat Angle, real 74.1° 73.7° 73.2° 72.8° 72.5° 72.6°
Top Tube Length
Top Tube Length (horizontal)
Head Tube Length
Seat Tube Length
Standover Height
Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm
Wheelbase 1.025 mm 1.033 mm 1.041 mm 1.048 mm 1.058 mm 1.070 mm
Bottom Bracket Drop 78 mm 78 mm 76 mm 76 mm 74 mm 74 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear)
Travel (front)

Notes

1 Alu und 2 Carbon-Modelle
