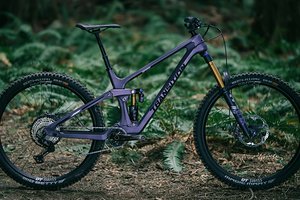

Transition Spire (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Transition Spire (2021) Transition Spire (2021) Transition Spire (2021) Transition Spire (2021) Transition Spire (2021)
Frame Size/Setup SM MD LG XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 430 mm 425 mm 460 mm 455 mm 485 mm 480 mm 510 mm 505 mm 535 mm 530 mm
Stack 619 mm 624 mm 619 mm 624 mm 628 mm 633 mm 637 mm 642 mm 646 mm 651 mm
STR 1,44 1,47 1,35 1,37 1,29 1,32 1,25 1,27 1,21 1,23
Reach+
Stack+
Front-Center
Head Angle 63° 62.5° 63° 62.5° 63° 62.5° 63° 62.5° 63° 62.5°
Seat Angle, effective 79.6° 79.1° 78.8° 78.3° 78.1° 77.6° 77.5° 77° 77.2° 76.7°
Seat Angle, real 70.5° 70° 70.5° 70° 70.5° 70° 70.5° 70° 70.5° 70°
Top Tube Length 547 mm 550 mm 577 mm 580 mm 605 mm 608 mm 633 mm 636 mm 661 mm 664 mm
Top Tube Length (horizontal)
Head Tube Length 100 mm 100 mm 100 mm 100 mm 110 mm 110 mm 120 mm 120 mm 130 mm 120 mm
Seat Tube Length 360 mm 360 mm 390 mm 390 mm 430 mm 430 mm 460 mm 460 mm 490 mm 490 mm
Standover Height 685 mm 685 mm 700 mm 700 mm 715 mm 715 mm 730 mm 730 mm 745 mm 745 mm
Chainstay Length 446 mm 448 mm 446 mm 448 mm 446 mm 448 mm 452 mm 454 mm 452 mm 454 mm
Wheelbase 1.227 mm 1.229 mm 1.257 mm 1.259 mm 1.287 mm 1.289 mm 1.322 mm 1.324 mm 1.352 mm 1.354 mm
Bottom Bracket Drop 25 mm 32 mm 25 mm 32 mm 25 mm 32 mm 25 mm 32 mm 25 mm 32 mm
Bottom Bracket Height 350 mm 343 mm 350 mm 343 mm 350 mm 343 mm 350 mm 343 mm 350 mm 343 mm
Fork installation height
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
