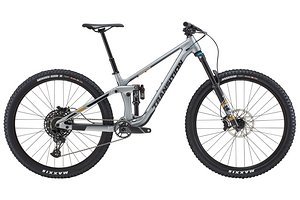

Transition Scout Alloy (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Transition Scout Alloy (2022) | Transition Scout Alloy (2022) | Transition Scout Alloy (2022) | Transition Scout Alloy (2022) |
|---|---|---|---|---|
| Frame Size/Setup | XS | SM | MD | LG |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 27,5″ / 650B | 27,5″ / 650B | 27,5″ / 650B | 27,5″ / 650B |
| Reach | 410 mm | 435 mm | 460 mm | 485 mm |
| Stack | 577 mm | 590 mm | 604 mm | 617 mm |
| STR | 1.41 | 1.36 | 1.31 | 1.27 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 708 mm | 733 mm | 759 mm | 785 mm |
| Frame RAAD | 35.4° | 36.4° | 37.3° | 38.2° |
| Front-Center | ||||
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 78.2° | 77.7° | 77.2° | 76.8° |
| Seat Angle, real | 72° | 72° | 72° | 72° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 534 mm | 564 mm | 593 mm | 623 mm |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Seat Tube Length | 350 mm | 360 mm | 390 mm | 430 mm |
| Standover Height | 665 mm | 665 mm | 673 mm | 686 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1,153 mm | 1,185 mm | 1,217 mm | 1,248 mm |
| FC2RC | 1.68 | 1.76 | 1.83 | 1.90 |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Fork installation height | ||||
| Fork offset | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | ||||
| Travel (rear) | 140 mm | 140 mm | 140 mm | 140 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
