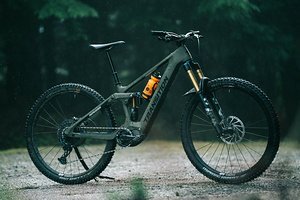

Transition Repeater (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Transition Repeater (2022) | Transition Repeater (2022) | Transition Repeater (2022) | Transition Repeater (2022) |
|---|---|---|---|---|
| Frame Size/Setup | SM | MD | LG | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Stack | 631 mm | 631 mm | 640 mm | 649 mm |
| STR | 1.48 | 1.39 | 1.33 | 1.27 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 761 mm | 778 mm | 800 mm | 825 mm |
| Frame RAAD | 34° | 35.8° | 36.9° | 38.2° |
| Front-Center | ||||
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 78.4° | 77.9° | 77.4° | 77.1° |
| Seat Angle, real | 72.5° | 72.5° | 72.5° | 72.5° |
| Top Tube Length | 559 mm | 589 mm | 617 mm | 650 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Length | ||||
| Standover Height | 705 mm | 715 mm | 720 mm | 725 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1,221 mm | 1,251 mm | 1,280 mm | 1,315 mm |
| FC2RC | 1.68 | 1.75 | 1.81 | 1.89 |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 160 mm | 160 mm | 160 mm | 160 mm |
| Travel (front) | 160 mm | 160 mm | 160 mm | 160 mm |
