Compare these geometries with each other

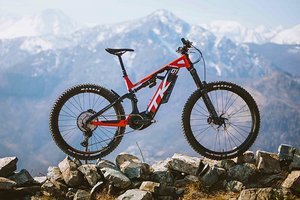

| Modell | Thok TK01 R (2022) | Thok TK01 R (2022) | Thok TK01 R (2022) | Thok TK01 R (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 |
| Reach | 423 mm | 439 mm | 464 mm | 491 mm |
| Stack | 614 mm | 623 mm | 638 mm | 654 mm |
| STR | 1,45 | 1,42 | 1,38 | 1,33 |
| Front-Center | ||||
| Head Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat Angle, effective | 75.5° | 75.5° | 75.5° | 75.5° |
| Seat Angle, real | ||||
| Top Tube Length | 582 mm | 600 mm | 629 mm | 660 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Standover Height | ||||
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1.212 mm | 1.233 mm | 1.265 mm | 1.298 mm |
| Bottom Bracket Drop | ||||
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 170 mm | 170 mm | 170 mm | 170 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
