Compare these geometries with each other

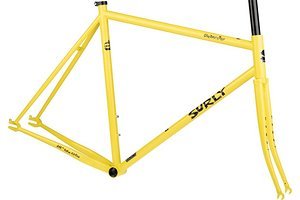

| Modell | Surly Steamroller (2022) | Surly Steamroller (2022) | Surly Steamroller (2022) | Surly Steamroller (2022) | Surly Steamroller (2022) |
|---|---|---|---|---|---|
| Frame Size/Setup | 49 | 53 | 56 | 59 | 62 |
| Typ | Sonstiges | Sonstiges | Sonstiges | Sonstiges | Sonstiges |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 388.1 mm | 394 mm | 402.3 mm | 408.2 mm | 420.6 mm |
| Stack | 504.9 mm | 531.3 mm | 558.8 mm | 586.4 mm | 618.1 mm |
| STR | 1,30 | 1,35 | 1,39 | 1,44 | 1,47 |
| Front-Center | |||||
| Head Angle | 72.5° | 73° | 73.5° | 74° | 74° |
| Seat Angle, effective | 74.5° | 74° | 73.5° | 73° | 73° |
| Seat Angle, real | 74.5° | 74° | 73.5° | 73° | 73° |
| Top Tube Length | 529.5 mm | 547 mm | 568 mm | 587 mm | 608 mm |
| Top Tube Length (horizontal) | 526.5 mm | 547 mm | 568 mm | 587 mm | 608 mm |
| Head Tube Length | 83 mm | 109 mm | 136 mm | 163 mm | 196 mm |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 620 mm |
| Standover Height | 748.5 mm | 780.5 mm | 807.9 mm | 835.2 mm | 865.3 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 956 mm | 966 mm | 978 mm | 987 mm | 1.009 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom Bracket Height | |||||
| Fork installation height | 375 mm | 375 mm | 375 mm | 375 mm | 375 mm |
| Fork offset | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Fork caster | |||||
| Travel (rear) | |||||
| Travel (front) |
