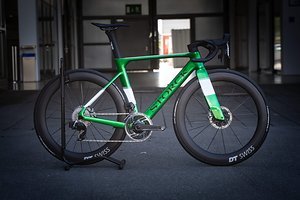

Storck Fascenario.4 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Storck Fascenario.4 (2022) | Storck Fascenario.4 (2022) | Storck Fascenario.4 (2022) | Storck Fascenario.4 (2022) | Storck Fascenario.4 (2022) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 381 mm | 388 mm | 397 mm | 404 mm | 417 mm |
| Stack | 514 mm | 541 mm | 569 mm | 591 mm | 613 mm |
| STR | 1.35 | 1.39 | 1.43 | 1.46 | 1.47 |
| Reach+ | |||||
| Stack+ | |||||
| Frame RAD | 640 mm | 666 mm | 694 mm | 716 mm | 741 mm |
| Frame RAAD | 36.5° | 35.6° | 34.9° | 34.4° | 34.2° |
| Front-Center | |||||
| Head Angle | 71.5° | 72.5° | 73.5° | 73.5° | 73.5° |
| Seat Angle, effective | |||||
| Seat Angle, real | 74.5° | 73.8° | 73.5° | 73.5° | 73.5° |
| Top Tube Length | |||||
| Top Tube Length (horizontal) | 524 mm | 545 mm | 566 mm | 582 mm | 599 mm |
| Head Tube Length | 106 mm | 132 mm | 158 mm | 182 mm | 206 mm |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 550 mm |
| Standover Height | |||||
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | |||||
| FC2RC | |||||
| Bottom Bracket Drop | |||||
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Trail | |||||
| Travel (rear) | |||||
| Travel (front) |
