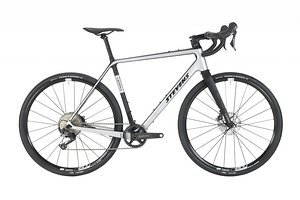

Stevens Camino (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Stevens Camino (2022) Stevens Camino (2022) Stevens Camino (2022) Stevens Camino (2022) Stevens Camino (2022) Stevens Camino (2022)
Frame Size/Setup 48 51 54 56 58 61
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 380 mm 389 mm 399 mm 407 mm 416 mm 425 mm
Stack 538 mm 556 mm 577 mm 596 mm 617 mm 636 mm
STR 1,42 1,43 1,45 1,46 1,48 1,50
Front-Center
Head Angle 70° 71° 71.5° 71.5° 72° 72°
Seat Angle, effective
Seat Angle, real 76° 74° 73° 73° 73° 73°
Top Tube Length
Top Tube Length (horizontal) 514 mm 531 mm 556 mm 572 mm 588 mm 606 mm
Head Tube Length 115 mm 130 mm 150 mm 170 mm 190 mm 210 mm
Seat Tube Length 434 mm 463 mm 493 mm 523 mm 554 mm 581 mm
Standover Height 751 mm 774 mm 800 mm 825 mm 850 mm 874 mm
Chainstay Length 440 mm 440 mm 440 mm 440 mm 440 mm 440 mm
Wheelbase 1.038 mm 1.044 mm 1.056 mm 1.070 mm 1.081 mm 1.096 mm
Bottom Bracket Drop 70 mm 70 mm 70 mm 70 mm 70 mm 70 mm
Bottom Bracket Height
Fork installation height 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm
Fork offset 50 mm 50 mm 50 mm 50 mm 50 mm 50 mm
Fork caster
Travel (rear)
Travel (front)
