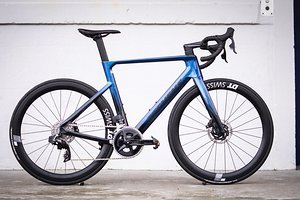

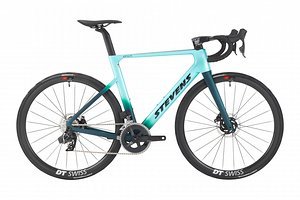

Stevens Arcalis (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Stevens Arcalis (2022) | Stevens Arcalis (2022) | Stevens Arcalis (2022) | Stevens Arcalis (2022) | Stevens Arcalis (2022) | Stevens Arcalis (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | 48 | 51 | 54 | 56 | 58 | 61 |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 378 mm | 379 mm | 387 mm | 397 mm | 407 mm | 411 mm |
| Stack | 491 mm | 503 mm | 528 mm | 549 mm | 568 mm | 594 mm |
| STR | 1,30 | 1,33 | 1,36 | 1,38 | 1,40 | 1,45 |
| Reach+ | ||||||
| Stack+ | ||||||
| Front-Center | ||||||
| Head Angle | 71.8° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 75.5° | 74.5° | 74° | 73.5° | 73.5° | 73° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 505 mm | 518 mm | 538 mm | 560 mm | 575 mm | 593 mm |
| Head Tube Length | 100 mm | 110 mm | 135 mm | 155 mm | 175 mm | 200 mm |
| Seat Tube Length | 507 mm | 522 mm | 550 mm | 573 mm | 593 mm | 621 mm |
| Standover Height | ||||||
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 973 mm | 971 mm | 983 mm | 995 mm | 1.010 mm | 1.018 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | 371 mm | 371 mm | 371 mm | 371 mm | 371 mm | 371 mm |
| Fork offset | ||||||
| Fork caster | ||||||
| Travel (rear) | ||||||
| Travel (front) |
