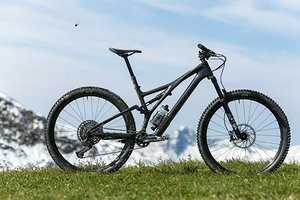

Specialized Stumpjumper (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Specialized Stumpjumper (2021) | Specialized Stumpjumper (2021) | Specialized Stumpjumper (2021) | Specialized Stumpjumper (2021) | Specialized Stumpjumper (2021) | Specialized Stumpjumper (2021) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | S1 | S2 | S3 | S4 | S5 | S6 |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 415 mm 410 mm | 435 mm 430 mm | 455 mm 450 mm | 480 mm 475 mm | 505 mm 500 mm | 535 mm 530 mm |
| Stack | 610 mm 614 mm | 609 mm 613 mm | 618 mm 622 mm | 627 mm 632 mm | 637 mm 641 mm | 646 mm 650 mm |
| STR | 1.47 1.50 | 1.40 1.43 | 1.36 1.38 | 1.31 1.33 | 1.26 1.28 | 1.21 1.23 |
| Reach+ | ||||||
| Stack+ | ||||||
| Frame RAD | 738 mm 738 mm | 748 mm 749 mm | 767 mm 768 mm | 790 mm 791 mm | 813 mm 813 mm | 839 mm 839 mm |
| Frame RAAD | 34.2° 33.7° | 35.5° 35° | 36.4° 35.9° | 37.4° 36.9° | 38.4° 38° | 39.6° 39.2° |
| Front-Center | ||||||
| Head Angle | 65.5° 65° | 65.5° 65° | 65.5° 65° | 65.5° 65° | 65.5° 65° | 65.5° 65° |
| Seat Angle, effective | 76.5° 76° | 76.5° 76° | 76.5° 76° | 76.5° 76° | 76.5° 76° | 76.5° 76° |
| Seat Angle, real | ||||||
| Top Tube Length | 563 mm 563 mm | 583 mm 483 mm | 605 mm 605 mm | 632 mm 632 mm | 660 mm 660 mm | 692 mm 692 mm |
| Top Tube Length (horizontal) | ||||||
| Head Tube Length | 95 mm 95 mm | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm | 130 mm 130 mm | 140 mm 140 mm |
| Seat Tube Length | 385 mm 385 mm | 385 mm 385 mm | 405 mm 405 mm | 425 mm 425 mm | 445 mm 445 mm | 465 mm 465 mm |
| Standover Height | ||||||
| Chainstay Length | 432 mm 432 mm | 432 mm 432 mm | 432 mm 432 mm | 432 mm 432 mm | 442 mm 442 mm | 442 mm 442 mm |
| Wheelbase | 1,152 mm 1,152 mm | 1,175 mm 1,175 mm | 1,200 mm 1,200 mm | 1,228 mm 1,228 mm | 1,268 mm 1,268 mm | 1,302 mm 1,302 mm |
| FC2RC | 1.67 1.67 | 1.72 1.72 | 1.78 1.78 | 1.84 1.84 | 1.87 1.87 | 1.95 1.95 |
| Bottom Bracket Drop | 40 mm 47 mm | 35 mm 42 mm | 35 mm 42 mm | 35 mm 42 mm | 35 mm 42 mm | 35 mm 42 mm |
| Bottom Bracket Height | 335 mm 328 mm | 340 mm 333 mm | 340 mm 333 mm | 340 mm 333 mm | 340 mm 333 mm | 340 mm 333 mm |
| Fork installation height | 550 mm 550 mm | 550 mm 550 mm | 550 mm 550 mm | 550 mm 550 mm | 550 mm 550 mm | 550 mm 550 mm |
| Fork offset | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm |
| Trail | ||||||
| Travel (rear) | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm |
| Travel (front) | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm |
