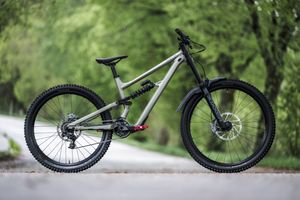

Specialized Status 2 (2025) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Specialized Status 2 (2025) Specialized Status 2 (2025) Specialized Status 2 (2025) Specialized Status 2 (2025) Specialized Status 2 (2025)
Frame Size/Setup S1 S2 S3 S4 S5
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 420 mm 426 mm 445 mm 451 mm 470 mm 476 mm 495 mm 501 mm 520 mm 526 mm
Stack 620 mm 616 mm 625 mm 620 mm 634 mm 629 mm 643 mm 638 mm 652 mm 647 mm
STR 1,48 1,45 1,40 1,37 1,35 1,32 1,30 1,27 1,25 1,23
Front-Center 762 mm 762 mm 789 mm 789 mm 819 mm 819 mm 848 mm 848 mm 878 mm 878 mm
Head Angle 63.5° 64° 63.5° 64° 63.5° 64° 63.5° 64° 63.5° 64°
Seat Angle, effective 77° 77.6° 77° 77.6° 77° 77.6° 77° 77.6° 77° 77.6°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 554 mm 554 mm 595 mm 595 mm 635 mm 635 mm 676 mm 676 mm 716 mm 716 mm
Head Tube Length 95 mm 95 mm 100 mm 100 mm 110 mm 110 mm 120 mm 120 mm 130 mm 130 mm
Seat Tube Length 390 mm 390 mm 400 mm 400 mm 420 mm 420 mm 440 mm 440 mm 465 mm 465 mm
Standover Height 735 mm 735 mm 735 mm 735 mm 742 mm 742 mm 748 mm 748 mm 752 mm 752 mm
Chainstay Length 432 mm 436 mm 432 mm 436 mm 432 mm 436 mm 437 mm 441 mm 437 mm 441 mm
Wheelbase 1.193 mm 1.193 mm 1.221 mm 1.221 mm 1.250 mm 1.250 mm 1.285 mm 1.285 mm 1.314 mm 1.314 mm
Bottom Bracket Drop 34 mm 26 mm 34 mm 26 mm 34 mm 26 mm 34 mm 26 mm 34 mm 26 mm
Bottom Bracket Height 342 mm 350 mm 342 mm 350 mm 342 mm 350 mm 342 mm 350 mm 342 mm 350 mm
Fork installation height 581 mm 581 mm 581 mm 581 mm 581 mm 581 mm 581 mm 581 mm 581 mm 581 mm
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster 138 mm 133 mm 138 mm 133 mm 138 mm 133 mm 138 mm 133 mm 138 mm 133 mm
Travel (rear) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
