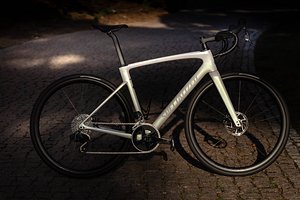

Specialized Roubaix SL8 (2024) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024) Specialized Roubaix SL8 (2024)
Frame Size/Setup 44 49 52 54 56 58 61 64
Typ Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 353 mm 363 mm 370 mm 381 mm 389 mm 397 mm 403 mm 409 mm
Stack 540 mm 555 mm 570 mm 585 mm 605 mm 630 mm 665 mm 685 mm
STR 1,53 1,53 1,54 1,54 1,56 1,59 1,65 1,67
Front-Center 589 mm 587 mm 593 mm 598 mm 604 mm 620 mm 631 mm 634 mm
Head Angle 69.3° 70.8° 71.5° 72.3° 73° 73° 73.5° 73.5°
Seat Angle, effective
Seat Angle, real 75° 74° 74° 74° 73.5° 73.5° 73.5° 73°
Top Tube Length
Top Tube Length (horizontal) 503 mm 523 mm 534 mm 550 mm 569 mm 584 mm 600 mm 618 mm
Head Tube Length 90 mm 90 mm 105 mm 122 mm 140 mm 168 mm 202 mm 222 mm
Seat Tube Length 365 mm 410 mm 446 mm 465 mm 485 mm 505 mm 545 mm 581 mm
Standover Height 686 mm 719 mm 747 mm 766 mm 787 mm 809 mm 847 mm 865 mm
Chainstay Length 418 mm 418 mm 418 mm 420 mm 420 mm 423 mm 423 mm 423 mm
Wheelbase 994 mm 992 mm 998 mm 1.005 mm 1.012 mm 1.031 mm 1.042 mm 1.054 mm
Bottom Bracket Drop 80 mm 80 mm 80 mm 78 mm 78 mm 78 mm 78 mm 78 mm
Bottom Bracket Height
Fork installation height 375 mm 375 mm 375 mm 375 mm 375 mm 375 mm 375 mm 375 mm
Fork offset 52 mm 52 mm 52 mm 47 mm 47 mm 47 mm 47 mm 47 mm
Fork caster 76 mm 66 mm 62 mm 61 mm 57 mm 57 mm 54 mm 54 mm
Travel (rear)
Travel (front)

Notes

Für S-Works und alle anderen Modelle identisch
