Compare these geometries with each other

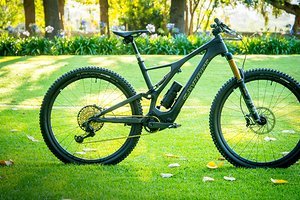

| Modell | Specialized Levo SL Aluminium (2020) | Specialized Levo SL Aluminium (2020) | Specialized Levo SL Aluminium (2020) | Specialized Levo SL Aluminium (2020) | Specialized Levo SL Aluminium (2020) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ | 29″ |
| Reach | 395 mm | 415 mm | 435 mm | 455 mm | 481 mm |
| Stack | 579 mm | 606 mm | 606 mm | 633 mm | 647 mm |
| STR | 1,47 | 1,46 | 1,39 | 1,39 | 1,35 |
| Front-Center | |||||
| Head Angle | 66° | 66° | 66° | 66° | 66° |
| Seat Angle, effective | 75.6° | 75.4° | 75.2° | 74.7° | 74.2° |
| Seat Angle, real | |||||
| Top Tube Length | 551 mm | 573 mm | 595 mm | 628 mm | 664 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 95 mm | 95 mm | 95 mm | 125 mm | 140 mm |
| Seat Tube Length | 380 mm | 390 mm | 410 mm | 455 mm | 505 mm |
| Standover Height | |||||
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1.145 mm | 1.165 mm | 1.185 mm | 1.217 mm | 1.249 mm |
| Bottom Bracket Drop | |||||
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Fork caster | |||||
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
