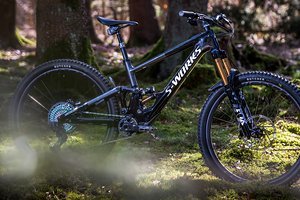

Specialized Kenevo SL (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Specialized Kenevo SL (2021) Specialized Kenevo SL (2021) Specialized Kenevo SL (2021) Specialized Kenevo SL (2021)
Frame Size/Setup S2 S3 S4 S5
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 437 mm 437 mm 436 mm 435 mm 435 mm 435 mm 465 mm 465 mm 464 mm 460 mm 460 mm 460 mm 489 mm 489 mm 488 mm 485 mm 485 mm 485 mm 512 mm 512 mm 511 mm 510 mm 510 mm 510 mm
Stack 611 mm 613 mm 617 mm 615 mm 619 mm 624 mm 623 mm 622 mm 621 mm 629 mm 628 mm 627 mm 629 mm 631 mm 634 mm 631 mm 637 mm 640 mm 638 mm 640 mm 643 mm 640 mm 646 mm 649 mm
STR 1,40 1,40 1,42 1,41 1,42 1,43 1,34 1,34 1,34 1,37 1,37 1,36 1,29 1,29 1,30 1,30 1,31 1,32 1,25 1,25 1,26 1,25 1,27 1,27
Front-Center
Head Angle 63.2° 63.9° 64.7° 62.5° 63.5° 64.5° 63.2° 63.9° 64.7° 62.5° 63.5° 64.5° 63.2° 63.9° 64.7° 62.5° 63.5° 64.5° 63.2° 63.9° 64.7° 62.5° 63.5° 64.5°
Seat Angle, effective 76.7° 76.5° 76.2° 76.2° 76° 75.8° 76.7° 76.5° 76.2° 76.2° 76° 75.8° 76.7° 76.5° 76.2° 76.2° 76° 75.8° 76.7° 76.5° 76.2° 76.2° 76° 75.8°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 437 mm 437 mm 436 mm 435 mm 435 mm 435 mm 465 mm 465 mm 464 mm 460 mm 460 mm 460 mm 489 mm 489 mm 488 mm 485 mm 485 mm 485 mm 512 mm 512 mm 511 mm 510 mm 510 mm 510 mm
Head Tube Length 105 mm 105 mm 105 mm 105 mm 105 mm 105 mm 115 mm 115 mm 115 mm 115 mm 115 mm 115 mm 125 mm 125 mm 125 mm 125 mm 125 mm 125 mm 135 mm 135 mm 135 mm 135 mm 135 mm 135 mm
Seat Tube Length 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm 420 mm 420 mm 420 mm 420 mm 420 mm 420 mm 440 mm 440 mm 440 mm 440 mm 440 mm 440 mm 465 mm 465 mm 465 mm 465 mm 465 mm 465 mm
Standover Height 782 mm 783 mm 784 mm 778 mm 779 mm 780 mm 782 mm 783 mm 784 mm 778 mm 779 mm 780 mm 795 mm 796 mm 797 mm 791 mm 792 mm 793 mm 805 mm 806 mm 807 mm 801 mm 802 mm 803 mm
Chainstay Length 442 mm 442 mm 442 mm 447 mm 447 mm 447 mm 442 mm 442 mm 442 mm 447 mm 447 mm 447 mm 442 mm 442 mm 442 mm 447 mm 447 mm 447 mm 442 mm 442 mm 442 mm 447 mm 447 mm 447 mm
Wheelbase
Bottom Bracket Drop 21 mm 19 mm 17 mm 27 mm 25 mm 23 mm 21 mm 19 mm 17 mm 27 mm 25 mm 23 mm 21 mm 19 mm 17 mm 27 mm 25 mm 23 mm 21 mm 19 mm 17 mm 27 mm 25 mm 23 mm
Bottom Bracket Height 354 mm 356 mm 358 mm 348 mm 350 mm 352 mm 21 mm 19 mm 17 mm 348 mm 25 mm 352 mm 354 mm 356 mm 358 mm 348 mm 350 mm 352 mm 354 mm 356 mm 358 mm 348 mm 350 mm 352 mm
Fork installation height 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm 579 mm
Fork offset 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm
Fork caster
Travel (rear) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
