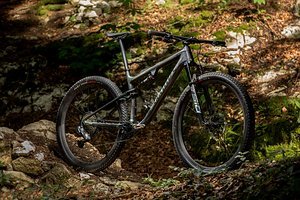

Specialized Epic S-Works (2021) - Geometry

Compare these geometries with each other

Die Tabelle lässt sich verschieben.
Modell Specialized Epic S-Works (2021) Specialized Epic S-Works (2021) Specialized Epic S-Works (2021) Specialized Epic S-Works (2021)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 415 mm 445 mm 470 mm 495 mm
Stack 586 mm 591 mm 605 mm 623 mm
STR 1,41 1,33 1,29 1,26
Reach+
Stack+
Front-Center
Head Angle 67.5° 67.5° 67.5° 67.5°
Seat Angle, effective 75.8° 75.5° 75.5° 75.5°
Seat Angle, real
Top Tube Length 563 mm 598 mm 626 mm 656 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 100 mm 115 mm 135 mm
Seat Tube Length 400 mm 430 mm 470 mm 520 mm
Standover Height 763 mm 766 mm 776 mm 788 mm
Chainstay Length 433 mm 433 mm 433 mm 433 mm
Wheelbase 1.116 mm 1.148 mm 1.179 mm 1.211 mm
Bottom Bracket Drop 48 mm 48 mm 48 mm 48 mm
Bottom Bracket Height 324 mm 324 mm 324 mm 324 mm
Fork installation height 506 mm 506 mm 506 mm 506 mm
Fork offset 44 mm 44 mm 44 mm 44 mm
Trail
Travel (rear) 100 mm 100 mm 100 mm 100 mm
Travel (front) 100 mm 100 mm 100 mm 100 mm
