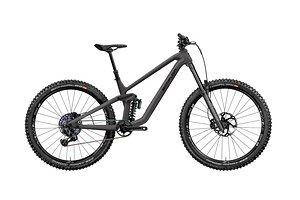

Simplon Rapcon 165 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Simplon Rapcon 165 (2022) | Simplon Rapcon 165 (2022) | Simplon Rapcon 165 (2022) | Simplon Rapcon 165 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm |
| Stack | 627 mm | 633 mm | 643 mm | 650 mm |
| STR | 1.44 | 1.39 | 1.35 | 1.31 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 763 mm | 780 mm | 799 mm | 817 mm |
| Frame RAAD | 34.8° | 35.7° | 36.5° | 37.3° |
| Front-Center | ||||
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 78° | 78° | 78° | 78° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 569 mm | 590 mm | 607 mm | 634 mm |
| Head Tube Length | 97 mm | 104 mm | 115 mm | 125 mm |
| Seat Tube Length | 370 mm | 395 mm | 420 mm | 445 mm |
| Standover Height | 743 mm | 743 mm | 749 mm | 749 mm |
| Chainstay Length | 432 mm | 438 mm | 443 mm | 447 mm |
| Wheelbase | 1,205 mm | 1,234 mm | 1,264 mm | 1,290 mm |
| FC2RC | 1.79 | 1.82 | 1.85 | 1.89 |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Bottom Bracket Height | ||||
| Fork installation height | 586 mm | 586 mm | 586 mm | 586 mm |
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | ||||
| Travel (rear) | 165 mm | 165 mm | 165 mm | 165 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
