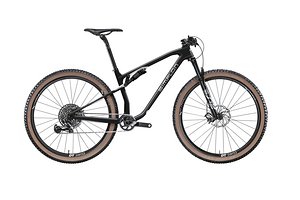

Simplon Cirex SL 100 mm (2022) - Geometry

The table can be moved.

Modell	Simplon Cirex SL 100 mm (2022)	Simplon Cirex SL 100 mm (2022)	Simplon Cirex SL 100 mm (2022)	Simplon Cirex SL 100 mm (2022)
Frame Size/Setup	S	M	L	XL
	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail
Typ	Mountainbike	Mountainbike	Mountainbike	Mountainbike
Wheel Size	29″	29″	29″	29″
Reach	430 mm	455 mm	480 mm	505 mm
Stack	585 mm	594 mm	609 mm	612 mm
STR	1,36	1,31	1,27	1,21
Front-Center
Head Angle	68°	68°	68°	68°
Seat Angle, effective	76°	76°	76°	76°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal)	576 mm	604 mm	626 mm	654 mm
Head Tube Length	89 mm	102 mm	115 mm	128 mm
Seat Tube Length	390 mm	425 mm	465 mm	510 mm
Standover Height	746 mm	746 mm	746 mm	746 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm
Wheelbase	1.128 mm	1.158 mm	1.188 mm	1.218 mm
Bottom Bracket Drop	45 mm	45 mm	45 mm	45 mm
Bottom Bracket Height
Fork installation height	511 mm	511 mm	511 mm	511 mm
Fork offset	44 mm	44 mm	44 mm	44 mm
Fork caster
Travel (rear)	100 mm	100 mm	100 mm	100 mm
Travel (front)	100 mm	100 mm	100 mm	100 mm
