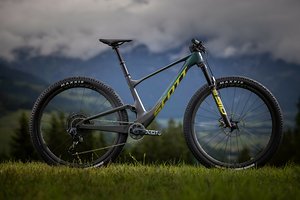

Scott Spark (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Scott Spark (2022) | Scott Spark (2022) | Scott Spark (2022) | Scott Spark (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Stack | 607.5 mm | 607.5 mm | 617.7 mm | 627 mm |
| STR | 1,48 | 1,38 | 1,31 | 1,25 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 65.8° | 65.8° | 65.8° | 65.8° |
| Seat Angle, effective | 75.7° | 75.9° | 76.4° | 76.7° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 561 mm | 589 mm | 613 mm | 641 mm |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Standover Height | 759 mm | 767 mm | 778 mm | 801 mm |
| Chainstay Length | 437.5 mm | 437.5 mm | 437.5 mm | 437.5 mm |
| Wheelbase | 1 mm | 1 mm | 1 mm | 1 mm |
| Bottom Bracket Drop | 43.5 mm | 43.5 mm | 43.5 mm | 43.5 mm |
| Bottom Bracket Height | 331.5 mm | 331.5 mm | 331.5 mm | 331.5 mm |
| Fork installation height | 540 mm | 540 mm | 540 mm | 540 mm |
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 120 mm | 120 mm | 120 mm | 120 mm |
| Travel (front) | 130 mm | 130 mm | 130 mm | 130 mm |
