Compare these geometries with each other

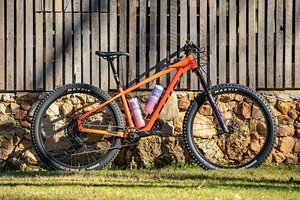

| Modell | Salsa Timberjack (2021) | Salsa Timberjack (2021) | Salsa Timberjack (2021) | Salsa Timberjack (2021) | Salsa Timberjack (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ | 29″ |
| Reach | 411 mm | 434 mm | 454 mm | 476 mm | 493 mm |
| Stack | 599 mm | 603 mm | 607 mm | 614 mm | 626 mm |
| STR | 1,46 | 1,39 | 1,34 | 1,29 | 1,27 |
| Front-Center | |||||
| Head Angle | 66.35° | 66.35° | 66.35° | 66.35° | 66.35° |
| Seat Angle, effective | 75.1° | 75.1° | 75.1° | 75.1° | 75.1° |
| Seat Angle, real | |||||
| Top Tube Length | 570 mm | 594 mm | 615 mm | 639 mm | 659 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 100 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Seat Tube Length | 343 mm | 370 mm | 395 mm | 432 mm | 457 mm |
| Standover Height | 682 mm | 716 mm | 744 mm | 777 mm | 805 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1.120 mm | 1.143 mm | 1.165 mm | 1.181 mm | 1.212 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Bottom Bracket Height | |||||
| Fork installation height | 543 mm | 543 mm | 543 mm | 543 mm | 543 mm |
| Fork offset | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork caster | |||||
| Travel (rear) | |||||
| Travel (front) | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
