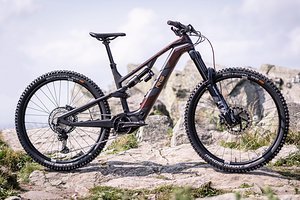

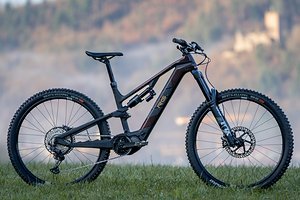

Rotwild R.G 375 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Rotwild R.G 375 (2022) | Rotwild R.G 375 (2022) | Rotwild R.G 375 (2022) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 450 mm | 475 mm | 500 mm |
| Stack | 632 mm | 643 mm | 657 mm |
| STR | 1.40 | 1.35 | 1.31 |
| Reach+ | |||
| Stack+ | |||
| Frame RAD | 776 mm | 799 mm | 826 mm |
| Frame RAAD | 35.5° | 36.5° | 37.3° |
| Front-Center | |||
| Head Angle | 63° | 63° | 63° |
| Seat Angle, effective | 76° | 76° | 76° |
| Seat Angle, real | |||
| Top Tube Length | |||
| Top Tube Length (horizontal) | 606 mm | 634 mm | 662 mm |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Seat Tube Length | 440 mm | 470 mm | 506 mm |
| Standover Height | 736 mm | 736 mm | 736 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1,276 mm | 1,306 mm | 1,338 mm |
| FC2RC | 1.77 | 1.84 | 1.91 |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Fork installation height | |||
| Fork offset | 44 mm | 44 mm | 44 mm |
| Trail | |||
| Travel (rear) | 177 mm | 177 mm | 177 mm |
| Travel (front) | 180 mm | 180 mm | 180 mm |
