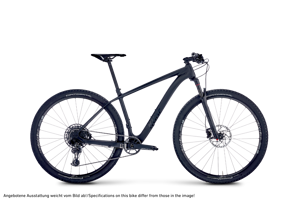

Rose Psycho Path (2022) - Geometry

The table can be moved.

Modell	Rose Psycho Path (2022)	Rose Psycho Path (2022)	Rose Psycho Path (2022)	Rose Psycho Path (2022)
Frame Size/Setup	S	M	L	XL
	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail
Typ	Mountainbike	Mountainbike	Mountainbike	Mountainbike
Wheel Size	27,5″ / 650B	29″	29″	29″
Reach	407 mm	426 mm	443 mm	462 mm
Stack	580 mm	626 mm	635 mm	640 mm
STR	1,43	1,47	1,43	1,39
Front-Center
Head Angle	70°	70.5°	70.5°	70.5°
Seat Angle, effective	74.5°	74°	74°	74°
Seat Angle, real	74.5°	74°	74°	74°
Top Tube Length
Top Tube Length (horizontal)	568 mm	605 mm	624 mm	645 mm
Head Tube Length	95 mm	100 mm	110 mm	115 mm
Seat Tube Length	415 mm	450 mm	480 mm	510 mm
Standover Height	751 mm	787 mm	810 mm	821 mm
Chainstay Length	428 mm	428 mm	428 mm	428 mm
Wheelbase	1.075 mm	1.100 mm	1.120 mm	1.141 mm
Bottom Bracket Drop	45 mm	67 mm	67 mm	67 mm
Bottom Bracket Height	303 mm	305 mm	305 mm	305 mm
Fork installation height
Fork offset	51 mm	51 mm	51 mm	51 mm
Fork caster
Travel (rear)	0 mm	0 mm	0 mm	0 mm
Travel (front)	100 mm	100 mm	100 mm	100 mm
