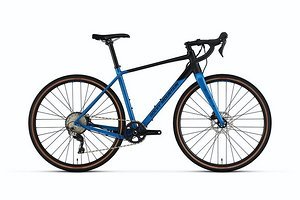

Rocky Mountain Solo (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Rocky Mountain Solo (2021) | Rocky Mountain Solo (2021) | Rocky Mountain Solo (2021) | Rocky Mountain Solo (2021) | Rocky Mountain Solo (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 384 mm | 392 mm | 399 mm | 404 mm | 414 mm |
| Stack | 527 mm | 553 mm | 580 mm | 613 mm | 641 mm |
| STR | 1,37 | 1,41 | 1,45 | 1,52 | 1,55 |
| Reach+ | |||||
| Stack+ | |||||
| Front-Center | |||||
| Head Angle | 69.5° | 70° | 71° | 71° | 72° |
| Seat Angle, effective | 75° | 74.5° | 74° | 73.5° | 73° |
| Seat Angle, real | |||||
| Top Tube Length | |||||
| Top Tube Length (horizontal) | 520 mm | 540 mm | 560 mm | 580 mm | 605 mm |
| Head Tube Length | 110 mm | 135 mm | 160 mm | 195 mm | 220 mm |
| Seat Tube Length | 414 mm | 452 mm | 490 mm | 528 mm | 566 mm |
| Standover Height | 742 mm | 771 mm | 800 mm | 836 mm | 867 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1.022 mm | 1.035 mm | 1.041 mm | 1.057 mm | 1.066 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Fork caster | |||||
| Travel (rear) | |||||
| Travel (front) |
