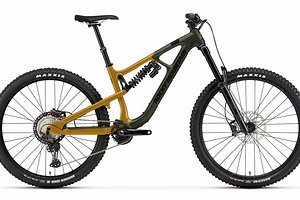

Rocky Mountain Slayer Carbon 29 (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Rocky Mountain Slayer Carbon 29 (2021) | Rocky Mountain Slayer Carbon 29 (2021) | Rocky Mountain Slayer Carbon 29 (2021) |
|---|---|---|---|
| Frame Size/Setup | MD | LG | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ 29″ 29″ | 29″ 29″ 29″ 29″ | 29″ 29″ 29″ 29″ |
| Reach | 439 mm 442 mm 445 mm 448 mm | 462 mm 464 mm 467 mm 470 mm | 493 mm 495 mm 499 mm 501 mm |
| Stack | 625 mm 623 mm 621 mm 619 mm | 639 mm 637 mm 634 mm 632 mm | 653 mm 651 mm 648 mm 646 mm |
| STR | 1,42 1,41 1,40 1,38 | 1,38 1,37 1,36 1,34 | 1,32 1,32 1,30 1,29 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 63.2° 63.5° 63.8° 64.1° | 63.2° 63.5° 63.8° 64.1° | 63.2° 63.5° 63.8° 64.1° |
| Seat Angle, effective | |||
| Seat Angle, real | 75.2° 75.5° 75.8° 76.1° | 75.2° 75.5° 75.8° 76.1° | 75.2° 75.5° 75.8° 76.1° |
| Top Tube Length | |||
| Top Tube Length (horizontal) | 604 mm 603 mm 603 mm 602 mm | 629 mm 629 mm 628 mm 627 mm | 664 mm 663 mm 662 mm 661 mm |
| Head Tube Length | 95 mm 95 mm 95 mm 95 mm | 110 mm 110 mm 110 mm 110 mm | 125 mm 125 mm 125 mm 125 mm |
| Seat Tube Length | 420 mm 420 mm 420 mm 420 mm | 445 mm 445 mm 445 mm 445 mm | 480 mm 480 mm 480 mm 480 mm |
| Standover Height | 832 mm 834 mm 837 mm 839 mm | 832 mm 834 mm 837 mm 839 mm | 832 mm 834 mm 837 mm 839 mm |
| Chainstay Length | 443 mm 443 mm 442 mm 442 mm | 443 mm 443 mm 442 mm 442 mm | 443 mm 443 mm 442 mm 442 mm |
| Wheelbase | 1.233 mm 1.233 mm 1.233 mm 1.232 mm | 1.262 mm 1.262 mm 1.261 mm 1.261 mm | 1.299 mm 1.299 mm 1.298 mm 1.298 mm |
| Bottom Bracket Drop | 27 mm 24 mm 20 mm 16 mm | 27 mm 24 mm 20 mm 16 mm | 27 mm 24 mm 20 mm 16 mm |
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | 44 mm 44 mm 44 mm 44 mm | 44 mm 44 mm 44 mm 44 mm | 44 mm 44 mm 44 mm 44 mm |
| Fork caster | |||
| Travel (rear) | 170 mm 170 mm 170 mm 170 mm | 170 mm 170 mm 170 mm 170 mm | 170 mm 170 mm 170 mm 170 mm |
| Travel (front) | 180 mm 180 mm 180 mm 180 mm | 180 mm 180 mm 180 mm 180 mm | 180 mm 180 mm 180 mm 180 mm |
