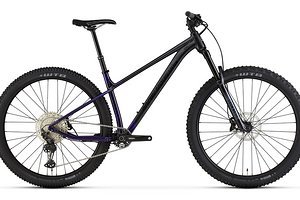

Rocky Mountain Growler (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Rocky Mountain Growler (2021) | Rocky Mountain Growler (2021) | Rocky Mountain Growler (2021) | Rocky Mountain Growler (2021) |
|---|---|---|---|---|
| Frame Size/Setup | SM | MD | LG | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Stack | 630 mm | 634 mm | 643 mm | 652 mm |
| STR | 1,48 | 1,41 | 1,35 | 1,30 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | ||||
| Seat Angle, real | 75° | 75° | 75° | 75° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 593 mm | 620 mm | 647 mm | 675 mm |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Standover Height | 779 mm | 802 mm | 804 mm | 818 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.183 mm | 1.210 mm | 1.239 mm | 1.269 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | ||||
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
