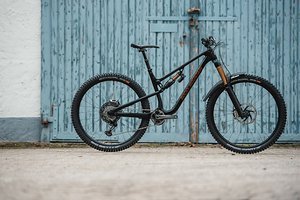

Rocky Mountain Altitude (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Rocky Mountain Altitude (2021) | Rocky Mountain Altitude (2021) | Rocky Mountain Altitude (2021) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 455 mm 455 mm | 480 mm 480 mm | 510 mm 510 mm |
| Stack | 620 mm 620 mm | 634 mm 634 mm | 647 mm 647 mm |
| STR | 1.36 1.36 | 1.32 1.32 | 1.27 1.27 |
| Reach+ | |||
| Stack+ | |||
| Frame RAD | 769 mm 769 mm | 795 mm 795 mm | 824 mm 824 mm |
| Frame RAAD | 36.3° 36.3° | 37.1° 37.1° | 38.2° 38.2° |
| Front-Center | |||
| Head Angle | 64.5° 65.5° | 64.5° 65.5° | 64.5° 65.5° |
| Seat Angle, effective | 75.4° 76.5° | 75.4° 76.5° | 75.4° 76.5° |
| Seat Angle, real | |||
| Top Tube Length | 610 mm 610 mm | 638 mm 638 mm | 671 mm 671 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 95 mm 95 mm | 110 mm 110 mm | 125 mm 125 mm |
| Seat Tube Length | 420 mm 420 mm | 445 mm 445 mm | 480 mm 480 mm |
| Standover Height | |||
| Chainstay Length | 438 mm 448 mm | 438 mm 448 mm | 438 mm 448 mm |
| Wheelbase | 1,217 mm 1,227 mm | 1,249 mm 1,259 mm | 1,285 mm 1,295 mm |
| FC2RC | 1.78 1.74 | 1.85 1.81 | 1.93 1.89 |
| Bottom Bracket Drop | 34 mm 19 mm | 34 mm 19 mm | 34 mm 19 mm |
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm |
| Trail | |||
| Travel (rear) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
| Travel (front) | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm |
