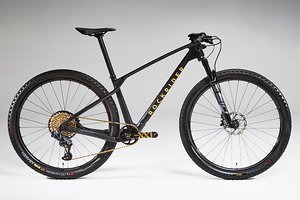

Rockrider Race 900 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Rockrider Race 900 (2022) | Rockrider Race 900 (2022) | Rockrider Race 900 (2022) | Rockrider Race 900 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 412 mm | 429 mm | 445 mm | 459 mm |
| Stack | 601 mm | 611 mm | 624 mm | 643 mm |
| STR | 1.46 | 1.42 | 1.40 | 1.40 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 729 mm | 747 mm | 766 mm | 790 mm |
| Frame RAAD | 34.4° | 35.1° | 35.5° | 35.5° |
| Front-Center | ||||
| Head Angle | 68° | 68° | 68° | 68° |
| Seat Angle, effective | 74° | 74° | 74° | 74° |
| Seat Angle, real | ||||
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Seat Tube Length | 370 mm | 400 mm | 450 mm | 520 mm |
| Standover Height | ||||
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1,121 mm | 1,142 mm | 1,163 mm | 1,185 mm |
| FC2RC | 1.58 | 1.63 | 1.67 | 1.72 |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | ||||
| Travel (rear) | ||||
| Travel (front) |
