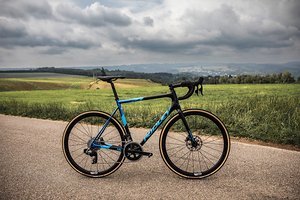

Ridley Helium Disc (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Ridley Helium Disc (2022) | Ridley Helium Disc (2022) | Ridley Helium Disc (2022) | Ridley Helium Disc (2022) | Ridley Helium Disc (2022) | Ridley Helium Disc (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | XXS | XS | S | M | L | XL |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 379 mm | 374 mm | 384 mm | 390 mm | 396 mm | 403 mm |
| Stack | 507 mm | 527 mm | 542 mm | 573 mm | 599 mm | 624 mm |
| STR | 1.34 | 1.41 | 1.41 | 1.47 | 1.51 | 1.55 |
| Reach+ | ||||||
| Stack+ | ||||||
| Frame RAD | 633 mm | 646 mm | 664 mm | 693 mm | 718 mm | 743 mm |
| Frame RAAD | 36.8° | 35.4° | 35.3° | 34.2° | 33.5° | 32.9° |
| Front-Center | ||||||
| Head Angle | 71.8° | 72° | 73° | 73.5° | 73.5° | 74° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 75° | 74° | 73.5° | 73° | 72.5° | 72.5° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 515 mm | 525 mm | 545 mm | 565 mm | 585 mm | 600 mm |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm | 230 mm |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Standover Height | ||||||
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 408 mm | 408 mm |
| Wheelbase | 970 mm | 970 mm | 977 mm | 987 mm | 1,005 mm | 1,014 mm |
| FC2RC | 1.40 | 1.40 | 1.41 | 1.44 | 1.46 | 1.49 |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | ||||||
| Fork offset | ||||||
| Trail | ||||||
| Travel (rear) | ||||||
| Travel (front) |
