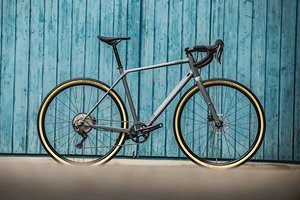

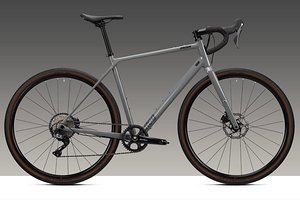

Radon Bikes Regard (2022) - Geometry

Compare these geometries with each other

Die Tabelle lässt sich verschieben.
Modell Radon Bikes Regard (2022) Radon Bikes Regard (2022) Radon Bikes Regard (2022) Radon Bikes Regard (2022) Radon Bikes Regard (2022)
Frame Size/Setup 50 53 56 58 61
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 384 mm 386 mm 389 mm 389 mm 398 mm
Stack 530 mm 554 mm 588 mm 609 mm 633 mm
STR 1,38 1,44 1,51 1,57 1,59
Reach+
Stack+
Front-Center
Head Angle 69° 70° 71.4° 72° 72.5°
Seat Angle, effective
Seat Angle, real 75.8° 74.7° 73.8° 73° 73°
Top Tube Length
Top Tube Length (horizontal) 518 mm 537 mm 560 mm 575 mm 592 mm
Head Tube Length 113 mm 135 mm 165 mm 185 mm 208 mm
Seat Tube Length 470 mm 500 mm 530 mm 550 mm 580 mm
Standover Height 745 mm 773 mm 804 mm 824 mm 854 mm
Chainstay Length 439.5 mm 439.5 mm 439.5 mm 439.5 mm 439.5 mm
Wheelbase 1.044 mm 1.044 mm 1.046 mm 1.046 mm 1.058 mm
Bottom Bracket Drop 70 mm 70 mm 70 mm 70 mm 70 mm
Bottom Bracket Height
Fork installation height
Fork offset
Trail
Travel (rear)
Travel (front)

Notes

Überstandshöhe gemessen 80 mm vor Tretlager
