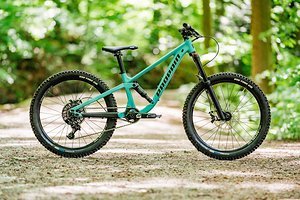

Propain Yuma 26" (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Propain Yuma 26" (2022)
Frame Size/Setup 13
Typ Mountainbike
Wheel Size 26″
Reach 380 mm
Stack 545 mm
STR 1,43
Front-Center
Head Angle 65°
Seat Angle, effective 75°
Seat Angle, real 72.5°
Top Tube Length
Top Tube Length (horizontal) 526 mm
Head Tube Length 95 mm
Seat Tube Length
Standover Height
Chainstay Length 432 mm
Wheelbase 1.111 mm
Bottom Bracket Drop 3 mm
Bottom Bracket Height
Fork installation height 520 mm
Fork offset 42 mm
Fork caster
Travel (rear)
Travel (front)
