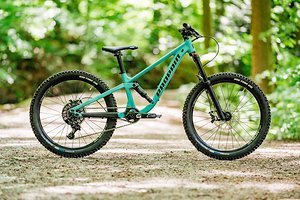

Propain Yuma 24" (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Propain Yuma 24" (2022) |
|---|---|
| Frame Size/Setup | 13 |
| Typ | Mountainbike |
| Wheel Size | 24″ |
| Reach | 380 mm |
| Stack | 545 mm |
| STR | 1,43 |
| Reach+ | |
| Stack+ | |
| Front-Center | |
| Head Angle | 65° |
| Seat Angle, effective | 75° |
| Seat Angle, real | 72.5° |
| Top Tube Length | |
| Top Tube Length (horizontal) | 526 mm |
| Head Tube Length | 95 mm |
| Seat Tube Length | |
| Standover Height | |
| Chainstay Length | 420 mm |
| Wheelbase | 1.099 mm |
| Bottom Bracket Drop | 3 mm |
| Bottom Bracket Height | |
| Fork installation height | 520 mm |
| Fork offset | 42 mm |
| Fork caster | |
| Travel (rear) | |
| Travel (front) |
