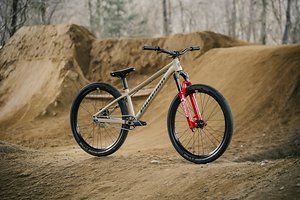

Propain Trickshot (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Propain Trickshot (2022) Propain Trickshot (2022)
Frame Size/Setup S/M L/XL
Typ Mountainbike Mountainbike
Wheel Size 26″ 26″
Reach 400 mm 425 mm
Stack 552.4 mm 552.4 mm
STR 1,38 1,30
Head Angle 68.5° 68.5°
Seat Angle, effective 72° 72°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 579.5 mm 604.5 mm
Head Tube Length 110 mm 110 mm
Seat Tube Length
Standover Height
Chainstay Length 390 mm 390 mm
Wheelbase 1.042 mm 1.067 mm
Bottom Bracket Drop 20 mm 20 mm
Bottom Bracket Height
Fork installation height 475 mm 475 mm
Fork offset 37 mm 37 mm
Fork caster
Travel (rear)
Travel (front) 100 mm 100 mm
