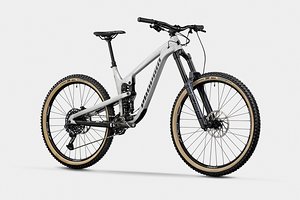

Propain Spindrift AL 29" (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Propain Spindrift AL 29" (2021) Propain Spindrift AL 29" (2021) Propain Spindrift AL 29" (2021)
Frame Size/Setup M L XL
Typ Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″
Reach 450 mm 475 mm 500 mm
Stack 633 mm 646 mm 660 mm
STR 1,41 1,36 1,32
Front-Center
Head Angle 64.5° 64.5° 64.5°
Seat Angle, effective 78° 78° 78°
Seat Angle, real 74.5° 74.5° 74.5°
Top Tube Length 584 mm 610 mm 641 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 110 mm 125 mm
Seat Tube Length 440 mm 460 mm 480 mm
Standover Height
Chainstay Length 445 mm 445 mm 445 mm
Wheelbase 1.234 mm 1.265 mm 1.297 mm
Bottom Bracket Drop 23 mm 23 mm 23 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear)
Travel (front)
