Compare these geometries with each other

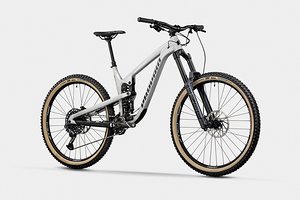

| Modell | Propain Spindrift AL 27,5" (2021) | Propain Spindrift AL 27,5" (2021) | Propain Spindrift AL 27,5" (2021) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 27,5″ / 650B | 27,5″ / 650B | 27,5″ / 650B |
| Reach | 425 mm | 450 mm | 475 mm |
| Stack | 608 mm | 617 mm | 626 mm |
| STR | 1,43 | 1,37 | 1,32 |
| Front-Center | |||
| Head Angle | 64.5° | 64.5° | 64.5° |
| Seat Angle, effective | 76° | 76° | 76° |
| Seat Angle, real | 78° | 78° | 78° |
| Top Tube Length | 554 mm | 581 mm | 608 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Seat Tube Length | 420 mm | 440 mm | 460 mm |
| Standover Height | |||
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.187 mm | 1.216 mm | 1.246 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | |||
| Fork caster | |||
| Travel (rear) | 180 mm | 180 mm | 180 mm |
| Travel (front) |
