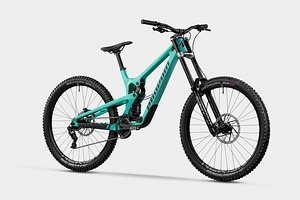

Propain Rage Mullet (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Propain Rage Mullet (2022) | Propain Rage Mullet (2022) | Propain Rage Mullet (2022) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 |
| Reach | 440 mm 440 mm | 465 mm 465 mm | 495 mm 495 mm |
| Stack | 629 mm 629 mm | 638 mm 638 mm | 638 mm 638 mm |
| STR | 1,43 1,43 | 1,37 1,37 | 1,29 1,29 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 63° 63° | 63° 63° | 63° 63° |
| Seat Angle, effective | 79° 79° | 79° 79° | 79° 79° |
| Seat Angle, real | 69° 69° | 69° 69° | 69° 69° |
| Top Tube Length | 562 mm 562 mm | 589 mm 589 mm | 619 mm 619 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 100 mm 100 mm | 110 mm 110 mm | 110 mm 110 mm |
| Seat Tube Length | 420 mm 420 mm | 440 mm 440 mm | 440 mm 440 mm |
| Standover Height | |||
| Chainstay Length | 445 mm 460 mm | 445 mm 460 mm | 445 mm 460 mm |
| Wheelbase | 1.246 mm 1.261 mm | 1.275 mm 1.290 mm | 1.305 mm 1.320 mm |
| Bottom Bracket Drop | 3 mm 3 mm | 3 mm 3 mm | 3 mm 3 mm |
| Bottom Bracket Height | |||
| Fork installation height | 602 mm 602 mm | 602 mm 602 mm | 602 mm 602 mm |
| Fork offset | 46 mm 46 mm | 46 mm 46 mm | 46 mm 46 mm |
| Fork caster | |||
| Travel (rear) | 215 mm 215 mm | 215 mm 215 mm | 215 mm 215 mm |
| Travel (front) | 200 mm 200 mm | 200 mm 200 mm | 200 mm 200 mm |
